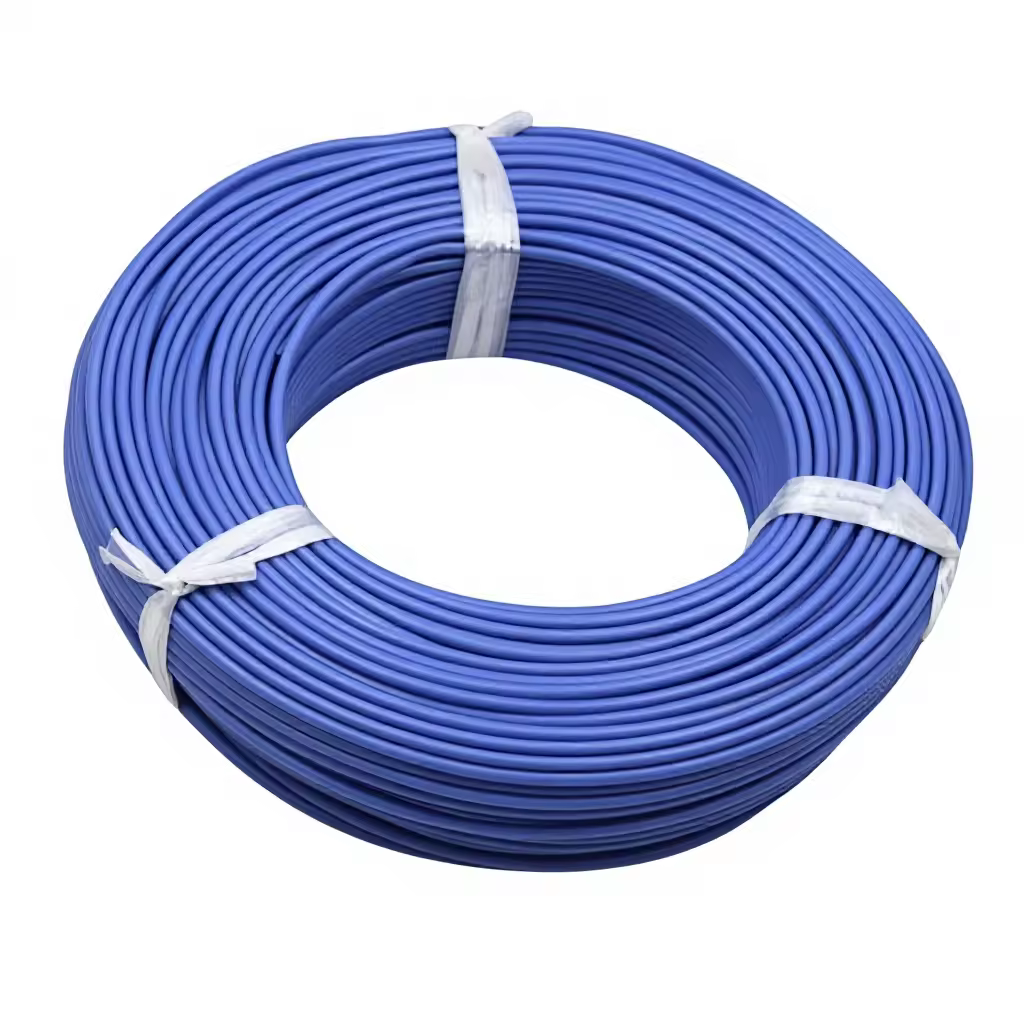

Silicone Wire UL AWM 3132 16 AWG — 150°C, 300V
Part No. SW-UL3132-16-500
UL approved silicone rubber wire with superior heat resistance and flexibility for appliance wiring.
- Conductor
- 16 AWG
- Voltage
- 300V
- Temp
- 150°C
- Ampacity
- 13A @ 150°C
Color: Multiple Colors
- MOQ
- 500 ft (152 m)
- Ships in
- 2-4 business days
- Packaging
- 500 ft, 1000 ft Reels
Made at our Kunshan factory. Need a custom build, private label or DDP delivery? See our cable manufacturing services.
Silicone Wire UL AWM 3132 specifications
| Conductor | Tinned Copper Stranded |
|---|---|
| Insulation | Silicone Rubber |
| Gauge | 16 AWG |
| Voltage Rating | 300V |
| Temperature Rating | 150°C |
| Ampacity | 13A @ 150°C |
| Color | Multiple Colors |
| Packaging | 500 ft, 1000 ft Reels |
Compare with similar
| Wire | Max °C | Best for |
|---|---|---|
| Silicone Wire UL AWM 3132 this product | 150°C | Appliance internal wiring, Heating equipment |
| Silicone Rubber Wire AGG Type | 180°C | Industrial automation, Robotics |
| Fluorine Plastic Wire FF46-1 Type | 200°C | High-temperature wiring, Computer wiring |
| PTFE Wire AF250 High Temperature | 250°C | Aerospace, Military |
Sizes in Silicone Rubber Wire
Each row is a separate construction with its own page and part number.
| AWG | Type | Part no. | Ampacity | Quote |
|---|---|---|---|---|
| 22 AWG, Silicone Wire UL3512 Fine Gauge | UL3512 | SW-UL3512-22-500 | 7A @ 200°C | Quote SW-UL3512-22-500 |
| 20 AWG, Silicone Rubber Wire AGG Type | AGG | SW-AGG-20-500 | 11A @ 180°C | Quote SW-AGG-20-500 |
| 18 AWG, Silicone Rubber Wire AGR Type | AGR | SW-AGR-18-500 | 10A @ 200°C | Quote SW-AGR-18-500 |
| 18 AWG, Silicone Wire JG Type Flexible | JG | SW-JG-18-500 | 10A @ 180°C | Quote SW-JG-18-500 |
| 18 AWG, Silicone Wire JGG Fiberglass Braided | JGG | SW-JGG-18-500 | 10A @ 180°C | Quote SW-JGG-18-500 |
| 16 AWG, Silicone Wire JHXG 1140V High Voltage | JHXG | SW-JHXG-16-1140V | 15A @ 180°C | Quote SW-JHXG-16-1140V |
| 16 AWG | UL3132 | SW-UL3132-16-500 | 13A @ 150°C | Quote SW-UL3132-16-500 |
| 14 AWG, Silicone Wire UL AWM 3135 | UL3135 | SW-UL3135-14-500 | 18A @ 200°C | Quote SW-UL3135-14-500 |
- Part no.
- SW-UL3512-22-500
- Ampacity
- 7A @ 200°C
- Part no.
- SW-AGG-20-500
- Ampacity
- 11A @ 180°C
- Part no.
- SW-AGR-18-500
- Ampacity
- 10A @ 200°C
- Part no.
- SW-JG-18-500
- Ampacity
- 10A @ 180°C
- Part no.
- SW-JGG-18-500
- Ampacity
- 10A @ 180°C
- Part no.
- SW-JHXG-16-1140V
- Ampacity
- 15A @ 180°C
16 AWG UL3132
this page- Part no.
- SW-UL3132-16-500
- Ampacity
- 13A @ 150°C
- Part no.
- SW-UL3135-14-500
- Ampacity
- 18A @ 200°C
Construction
- 1
Conductor
Tinned Copper Stranded, sized 16 AWG to deliver 13A of continuous ampacity.
- 2
Insulation
Silicone Rubber, rated to 150°C and 300V.
Applications
- Appliance internal wiring
- Heating equipment
- Ovens
- Dryers
Standards: UL AWM 3132
Common questions
What is the minimum order quantity and lead time?
Minimum order quantity is 500 ft (152 m). In stock — typical lead time 2-4 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries UL AWM 3132, RoHS Compliant certifications and complies with UL AWM 3132. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 150°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, PTFE/FEP fluoropolymer (extreme heat and chemical exposure) or TPE (cold flex) constructions are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom colors (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to support@shanghaiunicorncable.com.
