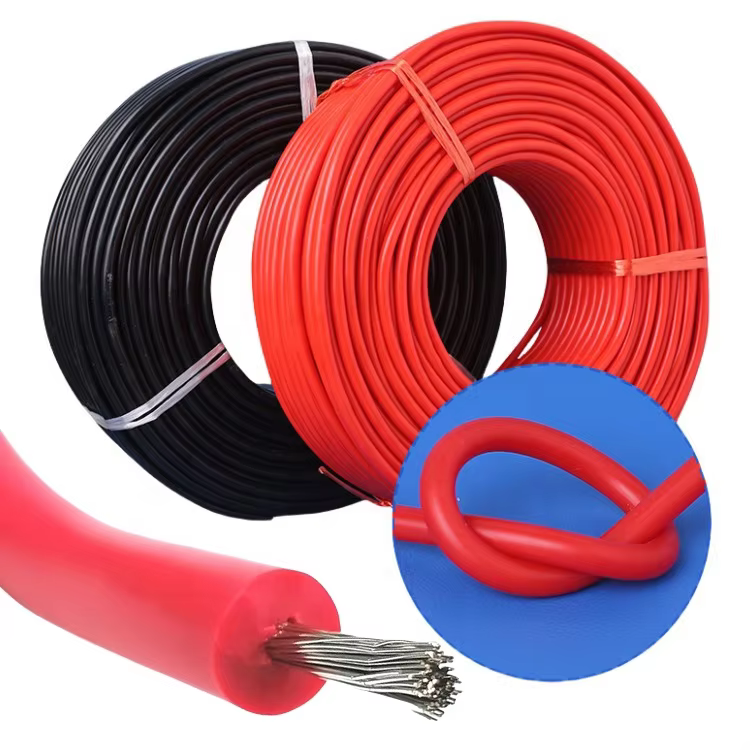

Silicone Rubber Wire AGG Type 20 AWG — 180°C, 500V
Part No. SW-AGG-20-500
Premium grade silicone rubber wire with enhanced insulation for demanding applications.
- Conductor
- 20 AWG
- Voltage
- 500V
- Temp
- 180°C
- Ampacity
- 11A @ 180°C
Color: Standard Colors
- MOQ
- 500 ft (152 m)
- Ships in
- 5-7 business days
- Packaging
- 500 ft, 1000 ft Reels
Made at our Kunshan factory. Need a custom build, private label or DDP delivery? See our cable manufacturing services.
Silicone Rubber Wire AGG Type specifications
| Conductor | Tinned Copper Stranded |
|---|---|
| Insulation | Premium Silicone Rubber (AGG Grade) |
| Gauge | 20 AWG |
| Voltage Rating | 500V |
| Temperature Rating | 180°C |
| Ampacity | 11A @ 180°C |
| Color | Standard Colors |
| Packaging | 500 ft, 1000 ft Reels |
Compare with similar
| Wire | Max °C | Best for |
|---|---|---|
| Silicone Rubber Wire AGG Type this product | 180°C | Industrial automation, Robotics |
| Silicone Wire UL AWM 3132 | 150°C | Appliance internal wiring, Heating equipment |
| Fluorine Plastic Wire FF46-1 Type | 200°C | High-temperature wiring, Computer wiring |
| PTFE Wire AF250 High Temperature | 250°C | Aerospace, Military |
Sizes in Silicone Rubber Wire
Each row is a separate construction with its own page and part number.
| AWG | Type | Part no. | Ampacity | Quote |
|---|---|---|---|---|
| 22 AWG, Silicone Wire UL3512 Fine Gauge | UL3512 | SW-UL3512-22-500 | 7A @ 200°C | Quote SW-UL3512-22-500 |
| 20 AWG | AGG | SW-AGG-20-500 | 11A @ 180°C | Quote SW-AGG-20-500 |
| 18 AWG, Silicone Rubber Wire AGR Type | AGR | SW-AGR-18-500 | 10A @ 200°C | Quote SW-AGR-18-500 |
| 18 AWG, Silicone Wire JG Type Flexible | JG | SW-JG-18-500 | 10A @ 180°C | Quote SW-JG-18-500 |
| 18 AWG, Silicone Wire JGG Fiberglass Braided | JGG | SW-JGG-18-500 | 10A @ 180°C | Quote SW-JGG-18-500 |
| 16 AWG, Silicone Wire JHXG 1140V High Voltage | JHXG | SW-JHXG-16-1140V | 15A @ 180°C | Quote SW-JHXG-16-1140V |
| 16 AWG, Silicone Wire UL AWM 3132 | UL3132 | SW-UL3132-16-500 | 13A @ 150°C | Quote SW-UL3132-16-500 |
| 14 AWG, Silicone Wire UL AWM 3135 | UL3135 | SW-UL3135-14-500 | 18A @ 200°C | Quote SW-UL3135-14-500 |
- Part no.
- SW-UL3512-22-500
- Ampacity
- 7A @ 200°C
20 AWG AGG
this page- Part no.
- SW-AGG-20-500
- Ampacity
- 11A @ 180°C
- Part no.
- SW-AGR-18-500
- Ampacity
- 10A @ 200°C
- Part no.
- SW-JG-18-500
- Ampacity
- 10A @ 180°C
- Part no.
- SW-JGG-18-500
- Ampacity
- 10A @ 180°C
- Part no.
- SW-JHXG-16-1140V
- Ampacity
- 15A @ 180°C
- Part no.
- SW-UL3132-16-500
- Ampacity
- 13A @ 150°C
- Part no.
- SW-UL3135-14-500
- Ampacity
- 18A @ 200°C
Construction
- 1
Conductor
Tinned Copper Stranded, sized 20 AWG to deliver 11A of continuous ampacity.
- 2
Insulation
Premium Silicone Rubber (AGG Grade), rated to 180°C and 500V.
Applications
- Industrial automation
- Robotics
- Motor leads
- Heating cables
Standards: AGG · VDE 0250
Common questions
What is the minimum order quantity and lead time?
Minimum order quantity is 500 ft (152 m). In stock — typical lead time 5-7 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries VDE Certified, RoHS Compliant certifications and complies with AGG, VDE 0250. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 180°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, PTFE/FEP fluoropolymer (extreme heat and chemical exposure) or TPE (cold flex) constructions are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom colors (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to support@shanghaiunicorncable.com.
