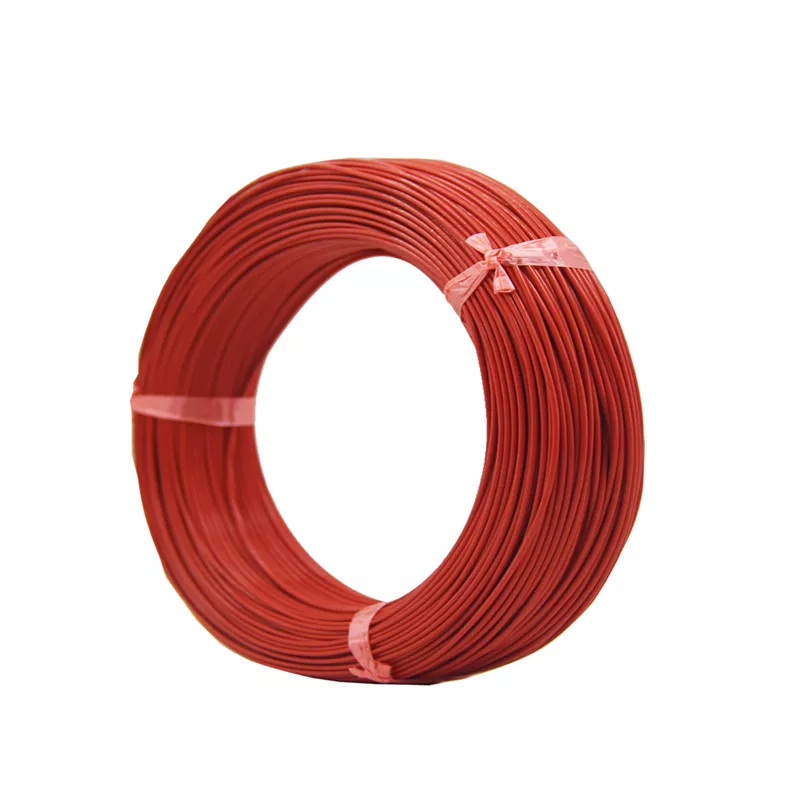

Fluorine Plastic Wire FF46-2 Type 16 AWG — 200°C, 600V
Part No. SW-FF46-2-16-500
Heavy-duty FEP fluorine plastic wire with enhanced insulation thickness for demanding industrial applications.
- Conductor
- 16 AWG
- Voltage
- 600V
- Temp
- 200°C
- Ampacity
- 13A @ 200°C
Color: Multiple Colors Available
- MOQ
- 500 ft (152 m)
- Ships in
- 5-7 business days
- Packaging
- 500 ft, 1000 ft Reels
Made at our Kunshan factory. Need a custom build, private label or DDP delivery? See our cable manufacturing services.
Fluorine Plastic Wire FF46-2 Type specifications
| Conductor | Tinned Copper Stranded |
|---|---|
| Insulation | FEP Fluorine Plastic (FF46-2) |
| Gauge | 16 AWG |
| Voltage Rating | 600V |
| Temperature Rating | 200°C |
| Ampacity | 13A @ 200°C |
| Color | Multiple Colors Available |
| Packaging | 500 ft, 1000 ft Reels |
| Wall Thickness | 0.020 in |
Compare with similar
| Wire | Max °C | Best for |
|---|---|---|
| Fluorine Plastic Wire FF46-2 Type this product | 200°C | Internal wiring, Appliances |
| Silicone Wire UL AWM 3132 | 150°C | Appliance internal wiring, Heating equipment |
| Silicone Rubber Wire AGG Type | 180°C | Industrial automation, Robotics |
| PTFE Wire AF250 High Temperature | 250°C | Aerospace, Military |
Sizes in Fluorine Plastic Insulation Wire
Each row is a separate construction with its own page and part number.
| AWG | Type | Part no. | Ampacity | Quote |
|---|---|---|---|---|
| 20 AWG, Fluorine Plastic Hook-Up Wire UL1901 | UL1901 | SW-UL1901-20-500 | 7A @ 200°C | Quote SW-UL1901-20-500 |
| 18 AWG, PTFE Wire AF250 High Temperature | AF250 | SW-AF250-18-500 | 7A @ 250°C | Quote SW-AF250-18-500 |
| 18 AWG, PTFE Wire AFR250 Flexible High Temperature | AFR250 | SW-AFR250-18-500 | 7A @ 250°C | Quote SW-AFR250-18-500 |
| 18 AWG, Fluorine Plastic Wire FF46-1 Type | FF46 | SW-FF46-1-18-500 | 10A @ 200°C | Quote SW-FF46-1-18-500 |
| 16 AWG | FF46 | SW-FF46-2-16-500 | 13A @ 200°C | Quote SW-FF46-2-16-500 |
- Part no.
- SW-UL1901-20-500
- Ampacity
- 7A @ 200°C
- Part no.
- SW-AF250-18-500
- Ampacity
- 7A @ 250°C
- Part no.
- SW-AFR250-18-500
- Ampacity
- 7A @ 250°C
- Part no.
- SW-FF46-1-18-500
- Ampacity
- 10A @ 200°C
16 AWG FF46
this page- Part no.
- SW-FF46-2-16-500
- Ampacity
- 13A @ 200°C
Construction
- 1
Conductor
Tinned Copper Stranded, sized 16 AWG to deliver 13A of continuous ampacity.
- 2
Insulation
FEP Fluorine Plastic (FF46-2), rated to 200°C and 600V.
Applications
- Internal wiring
- Appliances
- Heating equipment
- Industrial machinery
Standards: UL AWM 1332 · UL AWM 1333 · FF46-2
Common questions
What is the minimum order quantity and lead time?
Minimum order quantity is 500 ft (152 m). In stock — typical lead time 5-7 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries UL AWM 1332 / 1333, CSA Certified, RoHS Compliant certifications and complies with UL AWM 1332, UL AWM 1333, FF46-2. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 200°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat, flexible to -60°C) or TPE (cold flex) constructions are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom colors (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to support@shanghaiunicorncable.com.
