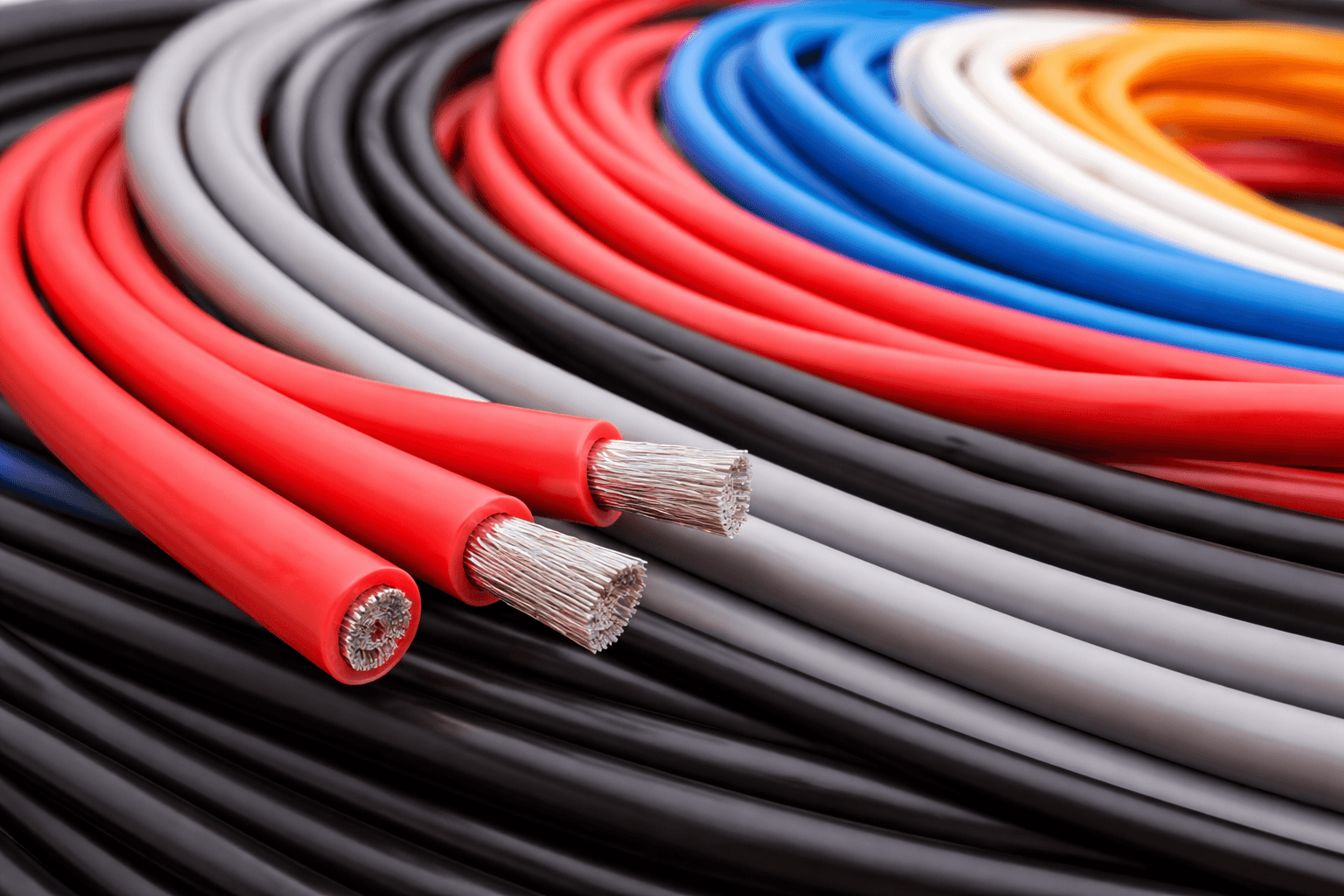

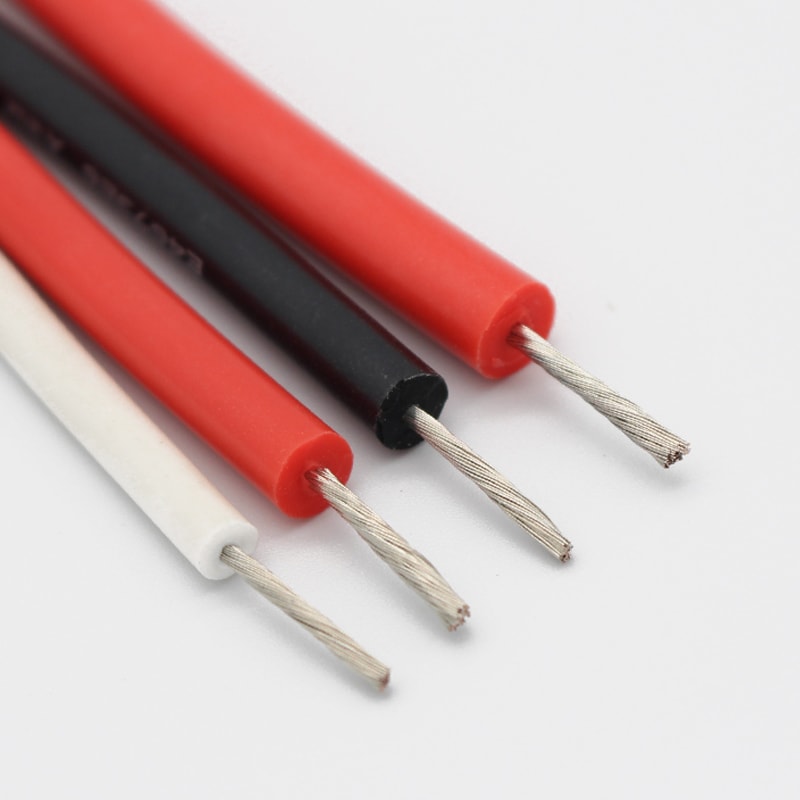

Silicone Wire JHXG 1140V High Voltage
Industrial Cable engineered for Mining equipment with 1140V rating and superior performance characteristics.
Part Number: SW-JHXG-16-1140V
High-voltage silicone rubber wire for industrial applications requiring voltage ratings up to 1140V.
Conductor Size
16 AWG
Voltage Rating
1140V
Current Rating
15A @ 180°C
Max Temp
180°C
Minimum Order: 500 ft •Packaging: 500 ft Reels
Product Overview
The Silicone Wire JHXG 1140V High Voltage represents the pinnacle of industrial cable engineering, specifically designed for Mining equipment in demanding industrial cable environments. This 1140V cable delivers exceptional 15A @ 180°C ampacity while maintaining GB/T Certified compliance, making it the preferred choice for industries requiring reliable power distribution and control solutions.
Constructed with Tinned Copper Stranded and protected by High-Voltage Grade Silicone Rubber with a durable protective jacket, this cable achieves a 180°C operating temperature rating. The optimized design ensures superior electrical performance even under challenging operating conditions. Advanced conductor stranding provides enhanced flexibility for installation, while the specialized insulation system minimizes signal loss and maintains electrical integrity. Each production run undergoes rigorous high-voltage testing to guarantee consistent performance in mission-critical applications.
Widely deployed in mining equipment, industrial motors, high-voltage heating, this cable serves critical power and control requirements across diverse sectors. The 16 AWG conductor sizing delivers optimal current capacity for mining equipment, while the 1140V voltage rating ensures safe operation in both commercial facilities and heavy-duty industrial environments. Whether installed in climate-controlled settings or exposed to demanding field conditions, this cable maintains JHXG 1140V performance throughout its service life.
Manufactured in compliance with JHXG 1140V, GB/T 5023 standards, the Silicone Wire JHXG 1140V High Voltage carries GB/T Certified, RoHS Compliant certifications. Our ISO 9001:2015 certified manufacturing facility implements stringent quality control measures including 100% electrical testing, dimensional verification, and comprehensive documentation. Each reel includes complete technical documentation with certificates of compliance, test reports, and full traceability records for quality assurance and regulatory compliance.
Why Choose This Cable?
Key advantages that make this product the right choice for your project
Superior Flex Life Engineering
Tinned Copper Stranded construction achieves exceptional bend cycle performance in continuous motion applications, exceeding industry standards for demanding industrial environments.
Enhanced Electrical Performance
1140V voltage rating with 15A @ 180°C ampacity delivers reliable power transmission with optimized conductor sizing for maximum efficiency.
Installation-Friendly Design
Red/Black color coding with sequential footage markers simplifies installation and circuit identification. Flexible construction enables easier routing through conduit and cable trays compared to rigid conductors.
Comprehensive Safety Compliance
GB/T Certified, RoHS Compliant certified for global market acceptance. Passes rigorous third-party testing and maintains documentation for complete regulatory compliance.
Wide Temperature Range
180°C temperature rating with advanced insulation formulation maintains flexibility and performance across extreme environmental conditions.
Extended Service Life
Engineered with premium materials to deliver long-term reliability in continuous duty applications, reducing replacement frequency and unplanned downtime.
Technical Specifications
Physical & Electrical Properties
| Conductor | Tinned Copper Stranded |
| Insulation | High-Voltage Grade Silicone Rubber |
| Gauge | 16 AWG |
| Voltage Rating | 1140V |
| Temperature Rating | 180°C |
| Ampacity | 15A @ 180°C |
| Color | Red/Black |
| Packaging | 500 ft Reels |
| Wall Thickness | 0.035 in |
Ordering Information
- Part Number
- SW-JHXG-16-1140V
- Product Category
- Industrial Cable - Extreme Environment
- Minimum Order
- 500 ft
- Stock Status
- In Stock - Ships Today
Applications & Industries
Proven performance across diverse industrial sectors
Manufacturing Plants
Heavy machinery power distribution, automated production lines, and industrial control systems
Commercial Buildings
Main power feeders, HVAC systems, elevator controls, and emergency lighting circuits
Infrastructure Projects
Utilities, transportation systems, renewable energy installations, and data centers
Suitable Applications Include:
Certifications & Standards
Compliance with international quality and safety standards
Industry Standards
- JHXG 1140V
- GB/T 5023
Product Certifications
All certifications are independently verified and regularly audited to ensure ongoing compliance with the latest industry requirements and safety standards.
Technical Documentation
Download product datasheets, technical drawings, and compliance certificates
Customization Options
Extensive customization capabilities to meet specific application requirements
Conductor Configurations
- Gauge sizes: 28 AWG to 500 kcmil
- Conductor count: 1 to 61 conductors
- Stranding class: Class B through M
- Material: Copper, tinned copper, aluminum
Insulation & Jacket Options
- Materials: PVC, XLPE, EPR, Silicone, Teflon®
- Jackets: CPE, TPE, PUR, Neoprene
- Custom color schemes available
- Pantone color matching (500 ft min)
Performance Enhancements
- Extended temperature: -60°C to +200°C
- Chemical resistant formulations
- UV protection for outdoor use
- LSZH and plenum-rated options
Need a Custom Solution?
Our engineering team can modify standard products or develop fully custom cable designs for unique installations. Minimum order quantities vary based on customization complexity.
