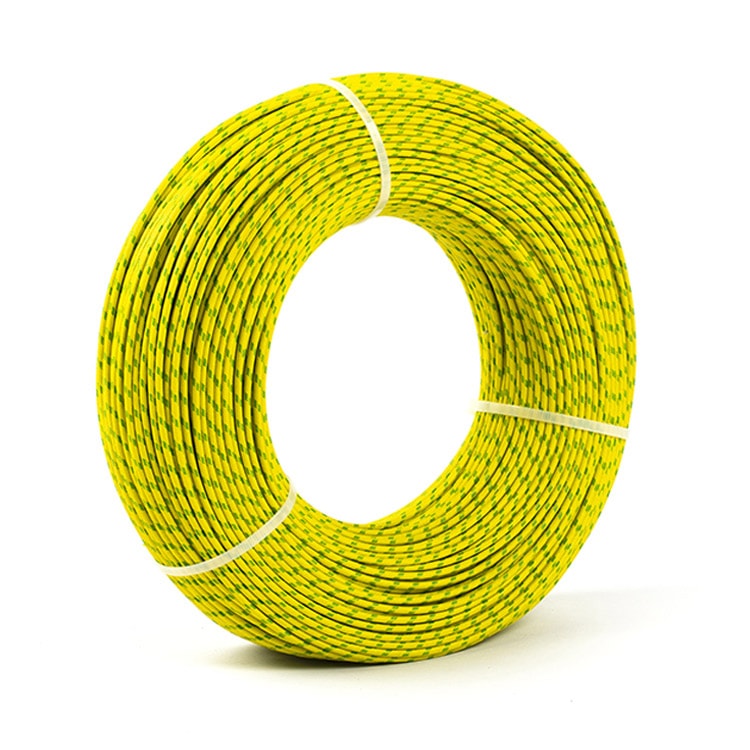

Fiberglass Silicone Wire AGRP Type 16 AWG — 200°C, 600V
Part No. SW-AGRP-16-500
Premium fiberglass braided silicone wire offering enhanced mechanical protection and heat resistance.
- Conductor
- 16 AWG
- Voltage
- 600V
- Temp
- 200°C
- Ampacity
- 13A @ 200°C
Color: White
- MOQ
- 500 ft (152 m)
- Ships in
- 5-7 business days
- Packaging
- 500 ft, 1000 ft Reels
Made at our Kunshan factory. Need a custom build, private label or DDP delivery? See our cable manufacturing services.
Fiberglass Silicone Wire AGRP Type specifications
| Conductor | Tinned Copper Extra Flexible Stranded |
|---|---|
| Insulation | Silicone Rubber with Braided Fiberglass |
| Gauge | 16 AWG |
| Voltage Rating | 600V |
| Temperature Rating | 200°C |
| Ampacity | 13A @ 200°C |
| Color | White/Red/Blue/Black |
| Packaging | 500 ft, 1000 ft Reels |
| Braid | Alkali-Free Fiberglass |
Compare with similar
| Wire | Max °C | Best for |
|---|---|---|
| Fiberglass Silicone Wire AGRP Type this product | 200°C | High-temperature motors, Heating equipment |
| Silicone Wire UL AWM 3132 | 150°C | Appliance internal wiring, Heating equipment |
| Silicone Rubber Wire AGG Type | 180°C | Industrial automation, Robotics |
| PTFE Wire AF250 High Temperature | 250°C | Aerospace, Military |
Sizes in Fiberglass Braided Silicone Wire
Each row is a separate construction with its own page and part number.
| AWG | Type | Part no. | Ampacity | Quote |
|---|---|---|---|---|
| 20 AWG, Fiberglass Silicone Wire UL AWM 3122 | AWM3122 | SW-AWM3122-20-500 | 7A @ 200°C | Quote SW-AWM3122-20-500 |
| 18 AWG, Fiberglass Silicone Wire UL AWM 3133 | AWM3133 | SW-AWM3133-18-500 | 10A @ 200°C | Quote SW-AWM3133-18-500 |
| 18 AWG, Fiberglass Braided Silicone Wire IEC 60245 | SW-60245-18-500 | SW-60245-18-500 | 10A @ 250°C | Quote SW-60245-18-500 |
| 16 AWG | AGRP | SW-AGRP-16-500 | 13A @ 200°C | Quote SW-AGRP-16-500 |
| 16 AWG, Fiberglass Silicone Wire UL3069 | UL3069 | SW-UL3069-16-500 | 13A | Quote SW-UL3069-16-500 |
| 14 AWG, Fiberglass Silicone Wire UL3068 | UL3068 | SW-UL3068-14-500 | 18A | Quote SW-UL3068-14-500 |
- Part no.
- SW-AWM3122-20-500
- Ampacity
- 7A @ 200°C
- Part no.
- SW-AWM3133-18-500
- Ampacity
- 10A @ 200°C
18 AWG, Fiberglass Braided Silicone Wire IEC 60245 SW-60245-18-500
- Part no.
- SW-60245-18-500
- Ampacity
- 10A @ 250°C
16 AWG AGRP
this page- Part no.
- SW-AGRP-16-500
- Ampacity
- 13A @ 200°C
- Part no.
- SW-UL3069-16-500
- Ampacity
- 13A
- Part no.
- SW-UL3068-14-500
- Ampacity
- 18A
Construction
- 1
Conductor
Tinned Copper Extra Flexible Stranded, sized 16 AWG to deliver 13A of continuous ampacity.
- 2
Insulation
Silicone Rubber, rated to 200°C and 600V.
- 3
Overbraid
Alkali-Free Fiberglass Braid
Applications
- High-temperature motors
- Heating equipment
- Industrial ovens
- Appliance wiring
Standards: AGRP
Common questions
What is the minimum order quantity and lead time?
Minimum order quantity is 500 ft (152 m). In stock — typical lead time 5-7 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries VDE Certified, RoHS Compliant certifications and complies with AGRP. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 200°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, PTFE/FEP fluoropolymer (extreme heat and chemical exposure) or TPE (cold flex) constructions are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom colors (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to support@shanghaiunicorncable.com.
