What is the minimum order quantity and lead time?

Minimum order quantity is 500 ft. In stock — typical lead time 3-5 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.

What certifications and documentation are provided?

This product carries UL3069, RoHS Compliant, CE Certified certifications and complies with UL3069. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.

Can this cable be used outdoors or in extreme temperatures?

Rated 200°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat) or TPE (cold flex) alternatives are available — contact us with your environmental parameters.

Do you offer custom lengths, colors, or configurations?

Yes. Custom jacket colours (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to engineering@shanghaiunicorncable.com.

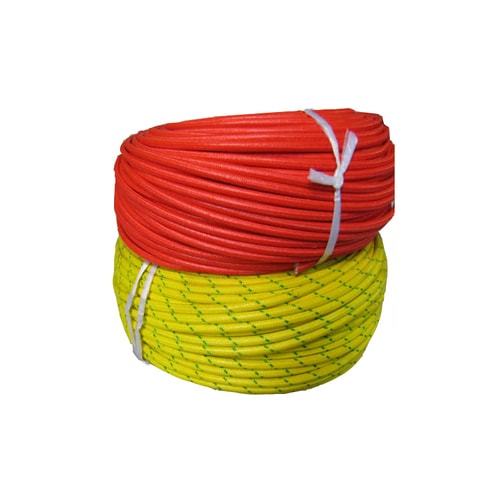

Fiber Glass Silicone Wire UL3069 — Fiberglass Braided Silicone Wire

UL3069 · RoHS Compliant · CE Certified

In Stock

Back to Fiberglass Braided Silicone WireFiberglass Braided Silicone Wire

Fiber Glass Silicone Wire UL3069

Part No. SW-UL3069-16-500

Medium gauge fiberglass braided silicone wire offering balanced performance and flexibility.

Conductor

16 AWG

Voltage

600V

Ampacity

13A @ 200°C

Temperature

200°C

100% Hipot Tested ISO 9001 Factory CoC Included Factory-Direct

Request a Quote Talk to an Engineer

Technical Specifications

Conductor	Tinned Copper Stranded
Insulation	Silicone Rubber with Protective Fiberglass Braid
Gauge	16 AWG
Voltage Rating	600V
Temperature Rating	200°C
Ampacity	13A @ 200°C
Color	Multiple Colors Available
Packaging	500 ft, 1000 ft Reels
Braid	Fiberglass

Construction

Conductor

Tinned Copper Stranded, sized 16 AWG to deliver 13A of continuous ampacity.

Insulation

Silicone Rubber with Protective Fiberglass Braid, rated to 200°C and 600V.

Outer Jacket

Integrated with the Silicone Rubber with Protective Fiberglass Braid system — sized to protect the 16 AWG conductor through 200°C thermal cycling in appliance internal wiring.

Finished Dimensions

Multiple Colors Available jacket, supplied on 500 ft, 1000 ft Reels.

Applications

Appliance internal wiring

Heating elements

Industrial equipment

Motor leads

UL3069

Common Questions

In Stock — Ships Today

Part Number

SW-UL3069-16-500

Conductor

16 AWG

Voltage

600V

Ampacity

13A @ 200°C

Min. Order500 ft

Lead Time3-5 business days

Packaging500 ft, 1000 ft Reels
