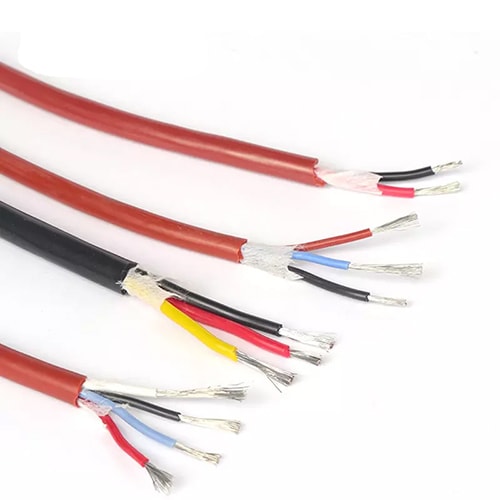

Multiple Cores Cable YGZ Heavy Duty 14 AWG — 180°C, 450V/750V
Part No. SW-YGZ-14-4C-500
Heavy-duty multi-conductor silicone cable for high-current power applications in industry.
- Conductor
- 14 AWG
- Voltage
- 450V/750V
- Temp
- 180°C
- Ampacity
- 18A per conductor
Color: Red
- MOQ
- 500 ft (152 m)
- Ships in
- 5-7 business days
- Packaging
- 500 ft Reels
Made at our Kunshan factory. Need a custom build, private label or DDP delivery? See our cable manufacturing services.
Multiple Cores Cable YGZ Heavy Duty specifications
| Conductor | Tinned Copper Stranded |
|---|---|
| Insulation | High-Grade Silicone Rubber |
| Gauge | 14 AWG |
| Voltage Rating | 450V/750V |
| Temperature Rating | 180°C |
| Ampacity | 18A per conductor |
| Color | Red/Blue/Black/Yellow |
| Packaging | 500 ft Reels |
| Conductors | 4 |
Compare with similar
| Wire | Max °C | Best for |
|---|---|---|
| Multiple Cores Cable YGZ Heavy Duty this product | 180°C | Heavy machinery, Industrial power |
| Silicone Wire UL AWM 3132 | 150°C | Appliance internal wiring, Heating equipment |
| Fluorine Plastic Wire FF46-1 Type | 200°C | High-temperature wiring, Computer wiring |
| PTFE Wire AF250 High Temperature | 250°C | Aerospace, Military |
Sizes in Multiple Cores Cables
Each row is a separate construction with its own page and part number.
| AWG | Type | Part no. | Ampacity | Quote |
|---|---|---|---|---|
| 20 AWG, Multiple Cores Cable FF/FFRP-3 | FFRP3 | SW-FFRP3-20-3C-500 | 7A per conductor | Quote SW-FFRP3-20-3C-500 |
| 18 AWG, Multiple Cores Cable KFF/KFFRP-3 Shielded | KFFRP3 | SW-KFFRP3-18-4C-500 | 10A per conductor | Quote SW-KFFRP3-18-4C-500 |
| 16 AWG, Multiple Cores Cable YGZP Silicone | YGZP | SW-YGZP-16-3C-500 | 13A per conductor | Quote SW-YGZP-16-3C-500 |
| 14 AWG | YGZ | SW-YGZ-14-4C-500 | 18A per conductor | Quote SW-YGZ-14-4C-500 |
- Part no.
- SW-FFRP3-20-3C-500
- Ampacity
- 7A per conductor
- Part no.
- SW-KFFRP3-18-4C-500
- Ampacity
- 10A per conductor
- Part no.
- SW-YGZP-16-3C-500
- Ampacity
- 13A per conductor
14 AWG YGZ
this page- Part no.
- SW-YGZ-14-4C-500
- Ampacity
- 18A per conductor
Construction
- 1
Conductor
Tinned Copper Stranded, sized 14 AWG to deliver 18A per conductor of continuous ampacity.
- 2
Insulation
High-Grade Silicone Rubber, rated to 180°C and 450V/750V.
Applications
- Heavy machinery
- Industrial power
- Heating equipment
- Construction equipment
Standards: YGZ · GB/T 5013
Common questions
What is the minimum order quantity and lead time?
Minimum order quantity is 500 ft (152 m). In stock — typical lead time 5-7 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries Meets GB/T 5013, RoHS Compliant certifications and complies with YGZ, GB/T 5013. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 180°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, PTFE/FEP fluoropolymer (extreme heat and chemical exposure) or TPE (cold flex) constructions are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom colors (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to support@shanghaiunicorncable.com.
