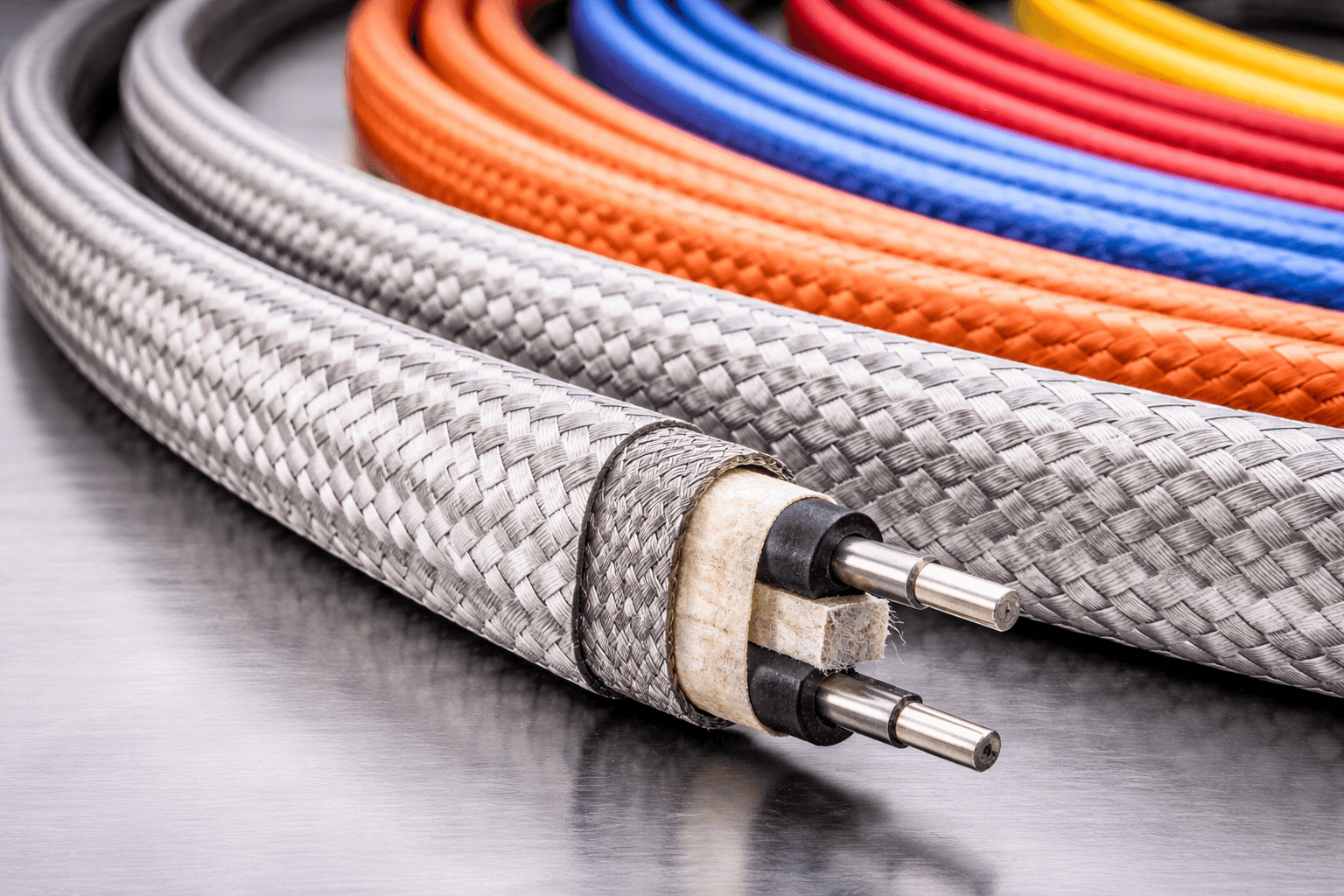

RDP2-J4 Constant Power Tracing Band 50W/m
Part No. SW-TRACE-RDP2J4-50-100
High-output constant wattage heating cable for demanding process heating applications up to 180°C with enhanced power density.
Conductor
14 AWG Bus Wire
Voltage
240V
Ampacity
15A
Temperature
180°C Maintain, 230°C Exposure
Technical Specifications
| Conductor | Nickel-Plated Copper Bus Wires (Heavy Duty) |
| Insulation | Enhanced FEP Fluoropolymer with Tinned Copper Braid |
| Heating Element | Constant Wattage Parallel Circuit (High Density) |
| Gauge | 14 AWG Bus Wire |
| Voltage Rating | 240V |
| Temperature Rating | 180°C Maintain, 230°C Exposure |
| Power Output | 50W/m @ Circuit Length |
| Ampacity | 15A |
| Color | Red / Orange Tracer |
| Packaging | 100-200 ft Heavy-Duty Drums |
| Circuit Type | Parallel Constant Wattage HD |
Construction
Conductor
Nickel-Plated Copper Bus Wires (Heavy Duty), sized 14 AWG Bus Wire to deliver 15A of continuous ampacity.
Insulation
Enhanced FEP Fluoropolymer with Tinned Copper Braid, rated to 180°C Maintain, 230°C Exposure and 240V.
Outer Jacket
Integrated with the Enhanced FEP Fluoropolymer with Tinned Copper Braid system — sized to protect the 14 AWG Bus Wire conductor through 180°C Maintain, 230°C Exposure thermal cycling in high-temp process lines.
Finished Dimensions
Red / Orange Tracer jacket, supplied on 100-200 ft Heavy-Duty Drums.
Applications
Common Questions
What is the minimum order quantity and lead time?
Minimum order quantity is 100 ft. In stock — typical lead time 14-18 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries FM Approved, CSA Class I Div 2, ATEX Zone 2, IECEx Certified certifications and complies with IEEE 515, IEC 60079-30-2, NEC 427.23. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 180°C Maintain, 230°C Exposure. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat) or TPE (cold flex) alternatives are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom jacket colours (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to engineering@shanghaiunicorncable.com.
