What is the minimum order quantity and lead time?

Minimum order quantity is 1000 ft. In stock — typical lead time 2-4 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.

What certifications and documentation are provided?

This product carries UL Listed, RoHS Compliant, FCC Part 68 certifications and complies with UL 2919, TIA/EIA-568. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.

Can this cable be used outdoors or in extreme temperatures?

Rated 75°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat) or TPE (cold flex) alternatives are available — contact us with your environmental parameters.

Do you offer custom lengths, colors, or configurations?

Yes. Custom jacket colours (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to engineering@shanghaiunicorncable.com.

Security System Cable 22/4 — Commercial Cable

UL Listed · RoHS Compliant · FCC Part 68

In Stock

Back to Commercial CableCommercial Cable

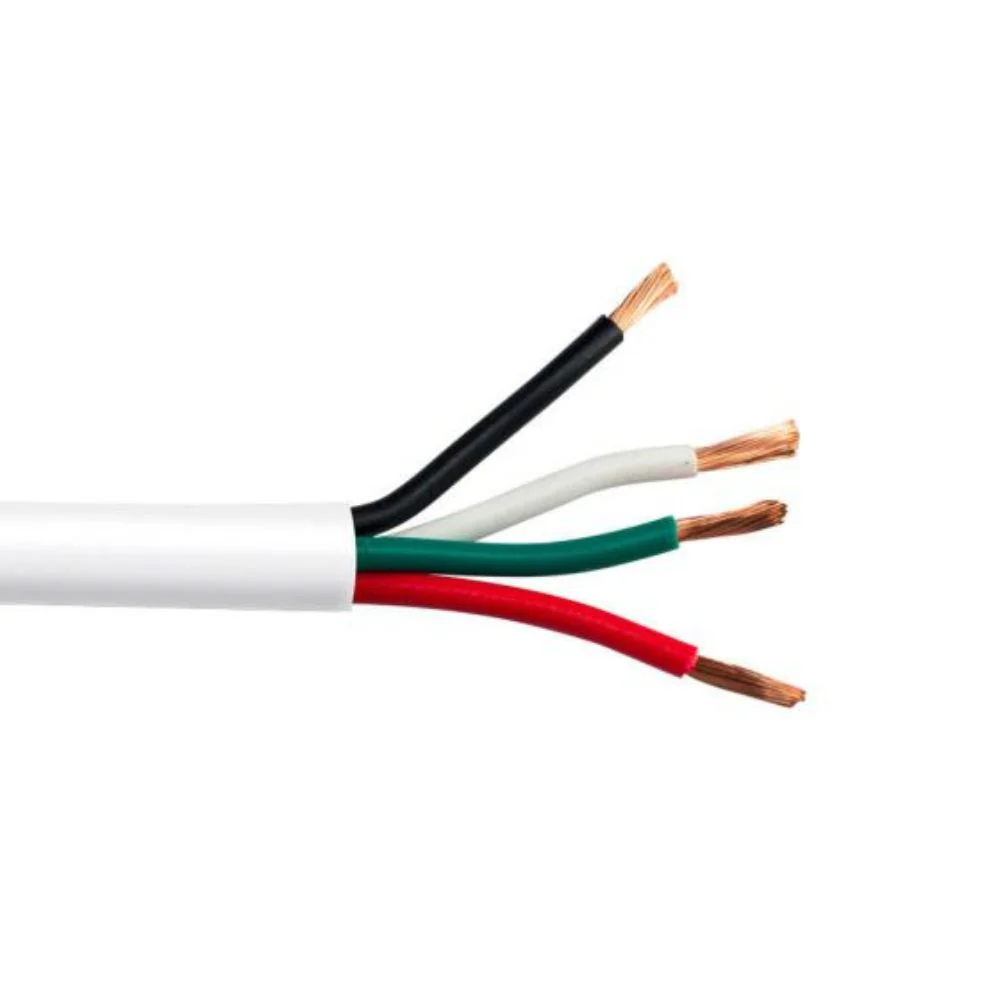

Security System Cable 22/4

Part No. SW-SEC-22-4-1000

Low-voltage cable for security cameras and access control systems.

Conductor

22 AWG

Voltage

300V

Ampacity

3A per conductor

Temperature

75°C

100% Hipot Tested ISO 9001 Factory CoC Included Factory-Direct

Request a Quote Talk to an Engineer

Technical Specifications

Conductor	Stranded Copper
Insulation	PVC with Shield
Gauge	22 AWG
Voltage Rating	300V
Temperature Rating	75°C
Ampacity	3A per conductor
Color	Gray
Packaging	1000 ft Reels
Conductors	4

Construction

Conductor

Stranded Copper, sized 22 AWG to deliver 3A per conductor of continuous ampacity.

Insulation

PVC with Shield, rated to 75°C and 300V.

Outer Jacket

Integrated with the PVC with Shield system — sized to protect the 22 AWG conductor through 75°C thermal cycling in security cameras.

Finished Dimensions

Gray jacket, supplied on 1000 ft Reels.

Applications

Security cameras

Access control

Intrusion detection

Card readers

UL 2919TIA/EIA-568

Common Questions

In Stock — Ships Today

Part Number

SW-SEC-22-4-1000

Conductor

22 AWG

Voltage

300V

Ampacity

3A per conductor

Min. Order1,000 ft

Lead Time2-4 business days

Packaging1000 ft Reels

Request a Quote Talk to an Engineer
