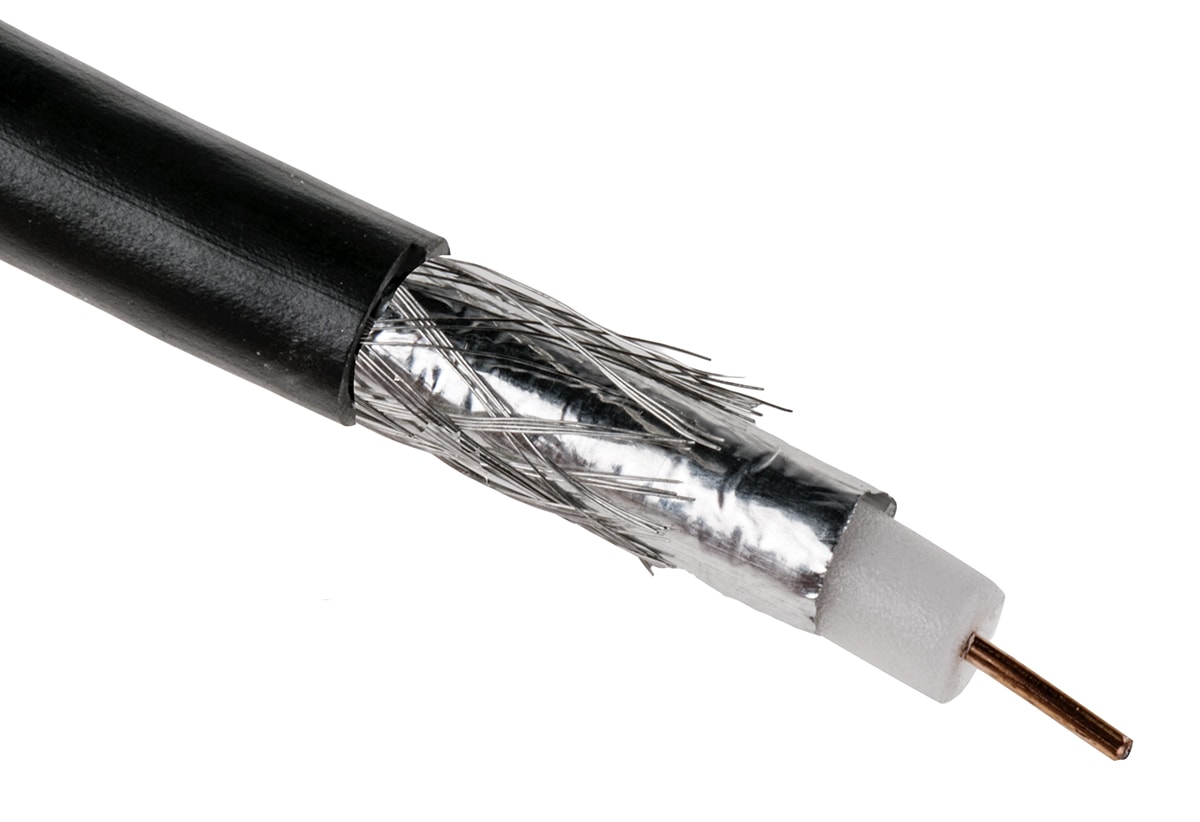

RG6 Coaxial Cable
Part No. SW-RG6-COAX-1000
High-quality coaxial cable for CCTV and video surveillance systems.
Conductor
18 AWG Center
Voltage
300V
Ampacity
1A
Temperature
75°C
- Min. Order
- 1,000 ft
- Lead Time
- 3-5 business days
- Packaging
- 1000 ft Reels
Technical Specifications
| Conductor | Copper Clad Steel |
| Insulation | Foam PE with Braid Shield |
| Gauge | 18 AWG Center |
| Voltage Rating | 300V |
| Temperature Rating | 75°C |
| Ampacity | 1A |
| Color | Black |
| Packaging | 1000 ft Reels |
| Impedance | 75 Ohm |
Construction
Conductor
Copper Clad Steel, sized 18 AWG Center to deliver 1A of continuous ampacity.
Insulation
Foam PE, rated to 75°C and 300V.
Shielding
Braid Shield
Finished Dimensions
Black insulation, supplied on 1000 ft Reels.
Applications
Common Questions
What is the minimum order quantity and lead time?
Minimum order quantity is 1000 ft. In stock — typical lead time 3-5 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries UL Listed, RoHS Compliant, FCC Approved certifications and complies with UL 1354, SCTE IPS-SP-001. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 75°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat, flexible to -60°C) or PTFE/FEP fluoropolymer (extreme heat and chemical exposure) or TPE (cold flex) constructions are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom colors (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to engineering@shanghaiunicorncable.com.
