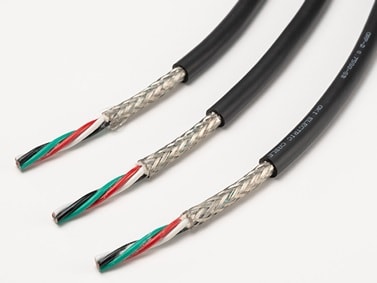

Robot Servo Shielded Cable
Part No. SW-ROBOT-18-SH-500
Premium shielded servo cable for high-precision robotic applications with excellent signal integrity.
Conductor
18 AWG
Voltage
600V
Ampacity
7A
Temperature
80°C
- Min. Order
- 500 ft
- Lead Time
- 3-5 business days
- Packaging
- 500 ft, 1000 ft Reels
Technical Specifications
| Conductor | Tinned Copper Ultra-fine Strand |
| Insulation | PVC with Foil + Braid Shield and PVC Jacket |
| Gauge | 18 AWG |
| Voltage Rating | 600V |
| Temperature Rating | 80°C |
| Ampacity | 7A |
| Color | Orange |
| Packaging | 500 ft, 1000 ft Reels |
| Shielding | Aluminum Foil + Tinned Copper Braid 85% |
Construction
Conductor
Tinned Copper Ultra-fine Strand, sized 18 AWG to deliver 7A of continuous ampacity.
Insulation
PVC, rated to 80°C and 600V.
Shielding
Aluminum Foil + Tinned Copper Braid 85%
Outer Jacket
PVC Jacket
Finished Dimensions
Orange jacket, supplied on 500 ft, 1000 ft Reels.
Applications
Common Questions
What is the minimum order quantity and lead time?
Minimum order quantity is 500 ft. In stock — typical lead time 3-5 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries UL Listed, CE Certified, RoHS Compliant certifications and complies with UL 758, IEC 60227. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 80°C with a PVC jacket. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat, flexible to -60°C) or PTFE/FEP fluoropolymer (extreme heat and chemical exposure) or TPE (cold flex) constructions are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom colors (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to engineering@shanghaiunicorncable.com.
