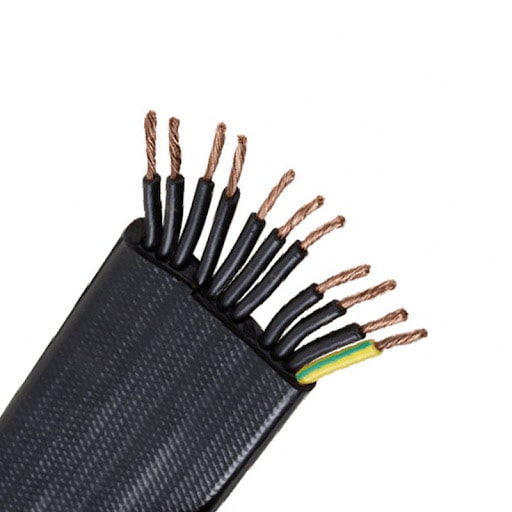

Flat Elevator Control Cable
Commercial Cable engineered for Elevator systems with 300V rating and superior performance characteristics.
Part Number: SW-ELEV-FLAT-20C-500
Flat traveling cable for elevator and escalator control systems.
Conductor Size
20 AWG
Voltage Rating
300V
Current Rating
3A per conductor
Max Temp
75°C
Minimum Order: 500 ft •Packaging: 500 ft Reels
Product Overview
The Flat Elevator Control Cable represents the pinnacle of commercial cable engineering, specifically designed for Elevator systems in demanding commercial cable environments. This 300V cable delivers exceptional 3A per conductor ampacity while maintaining UL Listed compliance, making it the preferred choice for industries requiring reliable power distribution and control solutions.
Constructed with Stranded Copper and protected by PVC Flat Configuration with a durable protective jacket, this cable achieves a 75°C operating temperature rating. The optimized design ensures superior electrical performance even under challenging operating conditions. Advanced conductor stranding provides enhanced flexibility for installation, while the specialized insulation system minimizes signal loss and maintains electrical integrity. Each production run undergoes rigorous high-voltage testing to guarantee consistent performance in mission-critical applications.
Widely deployed in elevator systems, escalators, moving walkways, this cable serves critical power and control requirements across diverse sectors. The 20 AWG conductor sizing delivers optimal current capacity for elevator systems, while the 300V voltage rating ensures safe operation in both commercial facilities and heavy-duty industrial environments. Whether installed in climate-controlled settings or exposed to demanding field conditions, this cable maintains ASME A17.1 performance throughout its service life.
Manufactured in compliance with ASME A17.1, UL 20 standards, the Flat Elevator Control Cable carries UL Listed, CSA Certified, Elevator Code Compliant certifications. Our ISO 9001:2015 certified manufacturing facility implements stringent quality control measures including 100% electrical testing, dimensional verification, and comprehensive documentation. Each reel includes complete technical documentation with certificates of compliance, test reports, and full traceability records for quality assurance and regulatory compliance.
Why Choose This Cable?
Key advantages that make this product the right choice for your project
Superior Flex Life Engineering
Stranded Copper construction achieves exceptional bend cycle performance in continuous motion applications, exceeding industry standards for demanding industrial environments.
Enhanced Electrical Performance
300V voltage rating with 3A per conductor ampacity delivers reliable power transmission with optimized conductor sizing for maximum efficiency.
Installation-Friendly Design
Gray color coding with sequential footage markers simplifies installation and circuit identification. Flexible construction enables easier routing through conduit and cable trays compared to rigid conductors.
Comprehensive Safety Compliance
UL Listed, CSA Certified, Elevator Code Compliant certified for global market acceptance. Passes rigorous third-party testing and maintains documentation for complete regulatory compliance.
Wide Temperature Range
75°C temperature rating with advanced insulation formulation maintains flexibility and performance across extreme environmental conditions.
Extended Service Life
Engineered with premium materials to deliver long-term reliability in continuous duty applications, reducing replacement frequency and unplanned downtime.
Technical Specifications
Physical & Electrical Properties
| Conductor | Stranded Copper |
| Insulation | PVC Flat Configuration |
| Gauge | 20 AWG |
| Voltage Rating | 300V |
| Temperature Rating | 75°C |
| Ampacity | 3A per conductor |
| Color | Gray |
| Packaging | 500 ft Reels |
| Conductors | 20 |
| Configuration | Flat |
Ordering Information
- Part Number
- SW-ELEV-FLAT-20C-500
- Product Category
- Commercial Cable - Flat Handle
- Minimum Order
- 500 ft
- Stock Status
- In Stock - Ships Today
