What is the minimum order quantity and lead time?

Minimum order quantity is 500 ft. In stock — typical lead time 3-5 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.

What certifications and documentation are provided?

This product carries UL Listed, CSA Certified certifications and complies with UL 62. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.

Can this cable be used outdoors or in extreme temperatures?

Rated 90°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat) or TPE (cold flex) alternatives are available — contact us with your environmental parameters.

Do you offer custom lengths, colors, or configurations?

Yes. Custom jacket colours (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to engineering@shanghaiunicorncable.com.

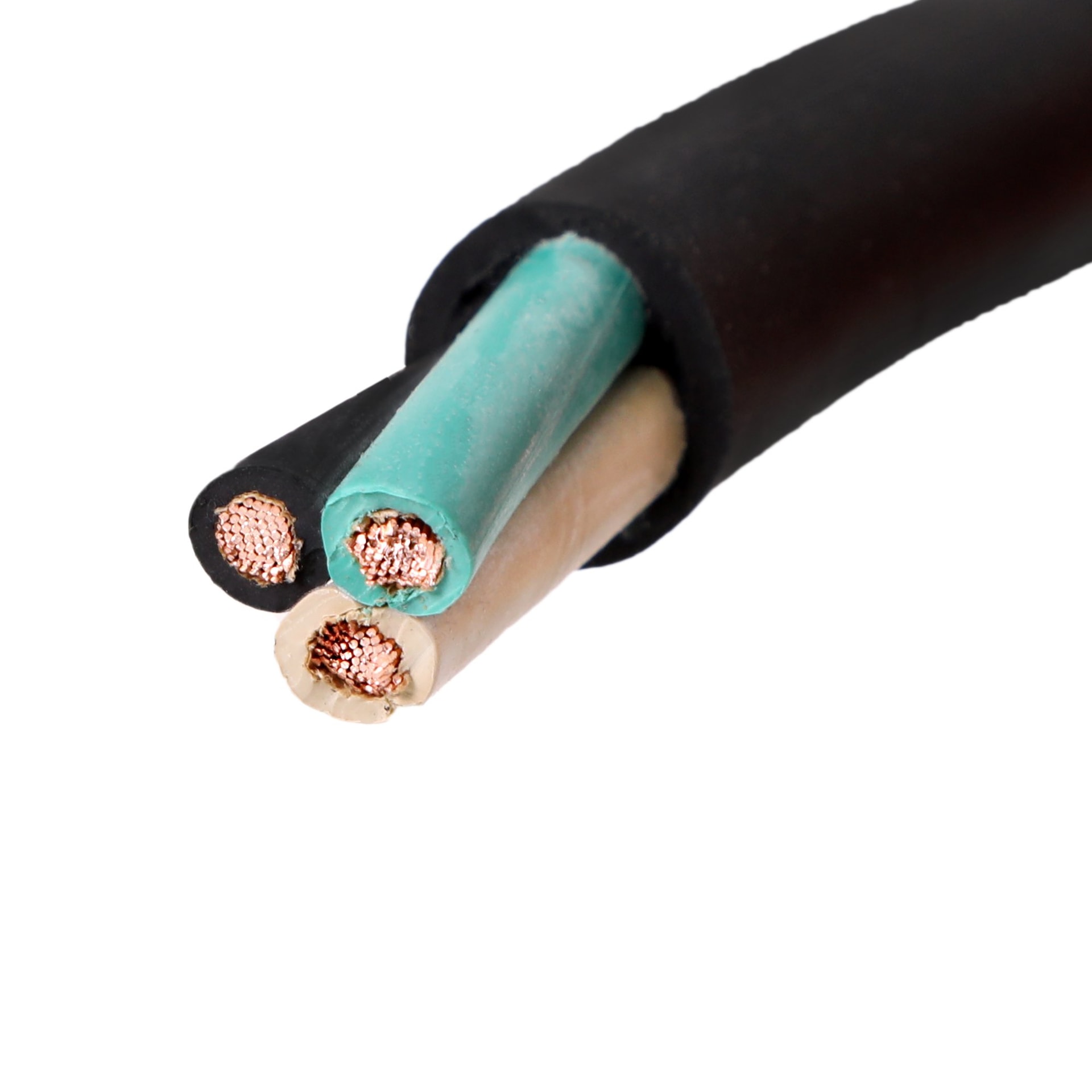

Equipment Power Cable 8/3 — Industrial Cable

UL Listed · CSA Certified

In Stock

Back to Industrial CableIndustrial Cable

Equipment Power Cable 8/3

Part No. SW-EQUIP-8-3-500

Portable power cable for mobile and reel-mounted equipment.

Conductor

8 AWG

Voltage

600V

Ampacity

50A

Temperature

90°C

100% Hipot Tested ISO 9001 Factory CoC Included Factory-Direct

Request a Quote Talk to an Engineer

Technical Specifications

Conductor	Stranded Copper
Insulation	EPDM with CPE Jacket
Gauge	8 AWG
Voltage Rating	600V
Temperature Rating	90°C
Ampacity	50A
Color	Black
Packaging	500 ft, 1000 ft Reels
Conductors	3 + Ground

Construction

Conductor

Stranded Copper, sized 8 AWG to deliver 50A of continuous ampacity.

Insulation

EPDM with CPE Jacket, rated to 90°C and 600V.

Outer Jacket

Integrated with the EPDM with CPE Jacket system — sized to protect the 8 AWG conductor through 90°C thermal cycling in portable equipment.

Finished Dimensions

Black jacket, supplied on 500 ft, 1000 ft Reels.

Applications

Portable equipment

Reel systems

Construction power

UL 62

Common Questions

In Stock — Ships Today

Part Number

SW-EQUIP-8-3-500

Conductor

8 AWG

Voltage

600V

Ampacity

50A

Min. Order500 ft

Lead Time3-5 business days

Packaging500 ft, 1000 ft Reels
