What is the minimum order quantity and lead time?

Minimum order quantity is 500 ft. Current lead time: 7-10 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.

What certifications and documentation are provided?

This product carries UL Listed, CSA Certified certifications and complies with UL 1277. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.

Can this cable be used outdoors or in extreme temperatures?

Rated 90°C. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat) or TPE (cold flex) alternatives are available — contact us with your environmental parameters.

Do you offer custom lengths, colors, or configurations?

Yes. Custom jacket colours (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to engineering@shanghaiunicorncable.com.

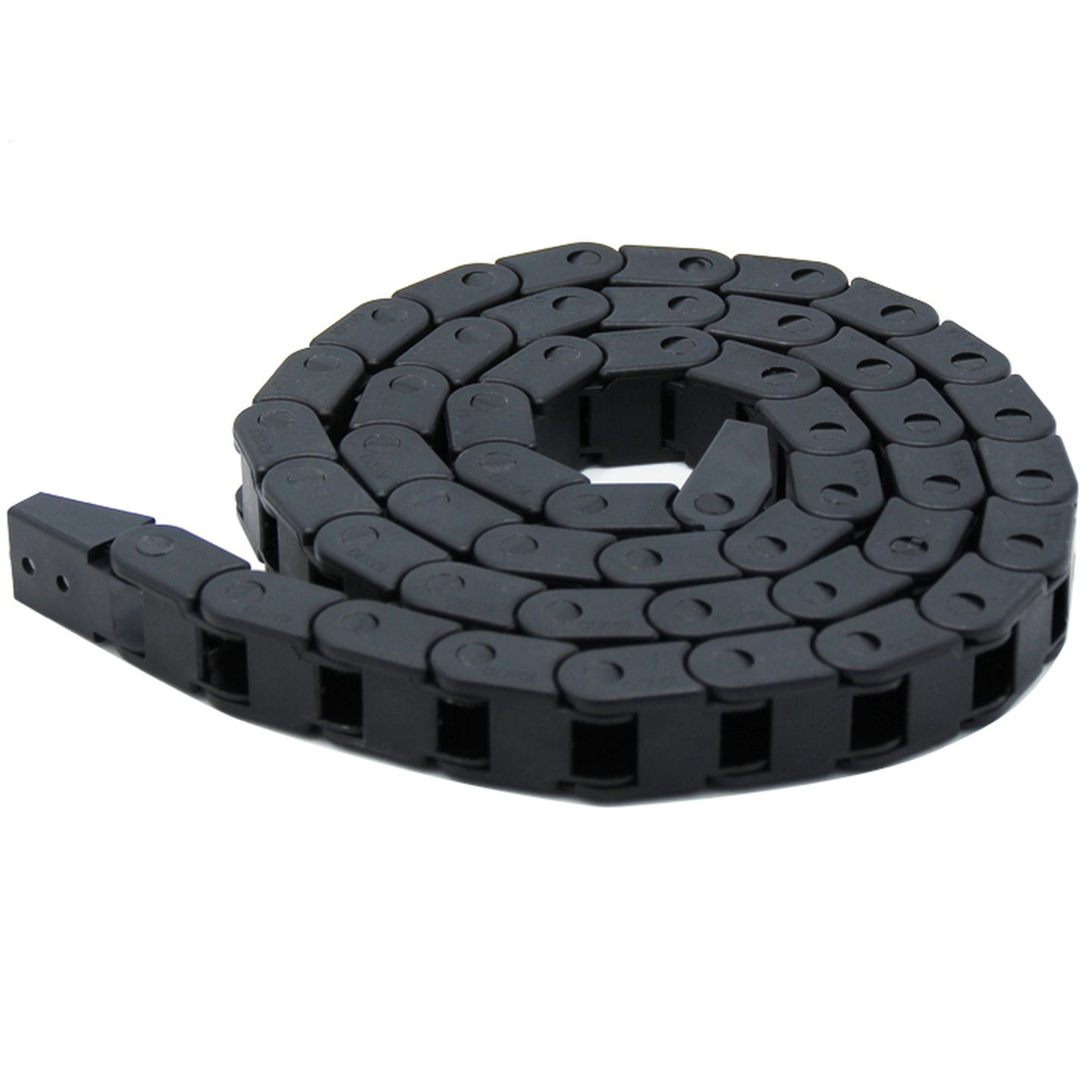

High-Flex Drag Chain 2kV — Industrial Cable

UL Listed · CSA Certified

7-10 business days

Back to Industrial CableIndustrial Cable

High-Flex Drag Chain 2kV

Part No. SW-DRAGCH-2KV-500

High-voltage drag chain cable for demanding power applications in automated systems.

Conductor

8 AWG

Voltage

2kV

Ampacity

60A

Temperature

90°C

100% Hipot Tested ISO 9001 Factory CoC Included Factory-Direct

Request a Quote Talk to an Engineer

Technical Specifications

Conductor	Class K Stranded Copper
Insulation	EPR with CPE Jacket
Gauge	8 AWG
Voltage Rating	2kV
Temperature Rating	90°C
Ampacity	60A
Color	Black
Packaging	500 ft, 1000 ft Reels

Construction

Conductor

Class K Stranded Copper, sized 8 AWG to deliver 60A of continuous ampacity.

Insulation

EPR with CPE Jacket, rated to 90°C and 2kV.

Outer Jacket

Integrated with the EPR with CPE Jacket system — sized to protect the 8 AWG conductor through 90°C thermal cycling in high-power drag chains.

Finished Dimensions

Black jacket, supplied on 500 ft, 1000 ft Reels.

Applications

High-power drag chains

Automated machinery

Industrial robots

UL 1277

Common Questions

Lead Time: 7-10 business days

Part Number

SW-DRAGCH-2KV-500

Conductor

8 AWG

Voltage

2kV

Ampacity

60A

Min. Order500 ft

Lead Time7-10 business days

Packaging500 ft, 1000 ft Reels
