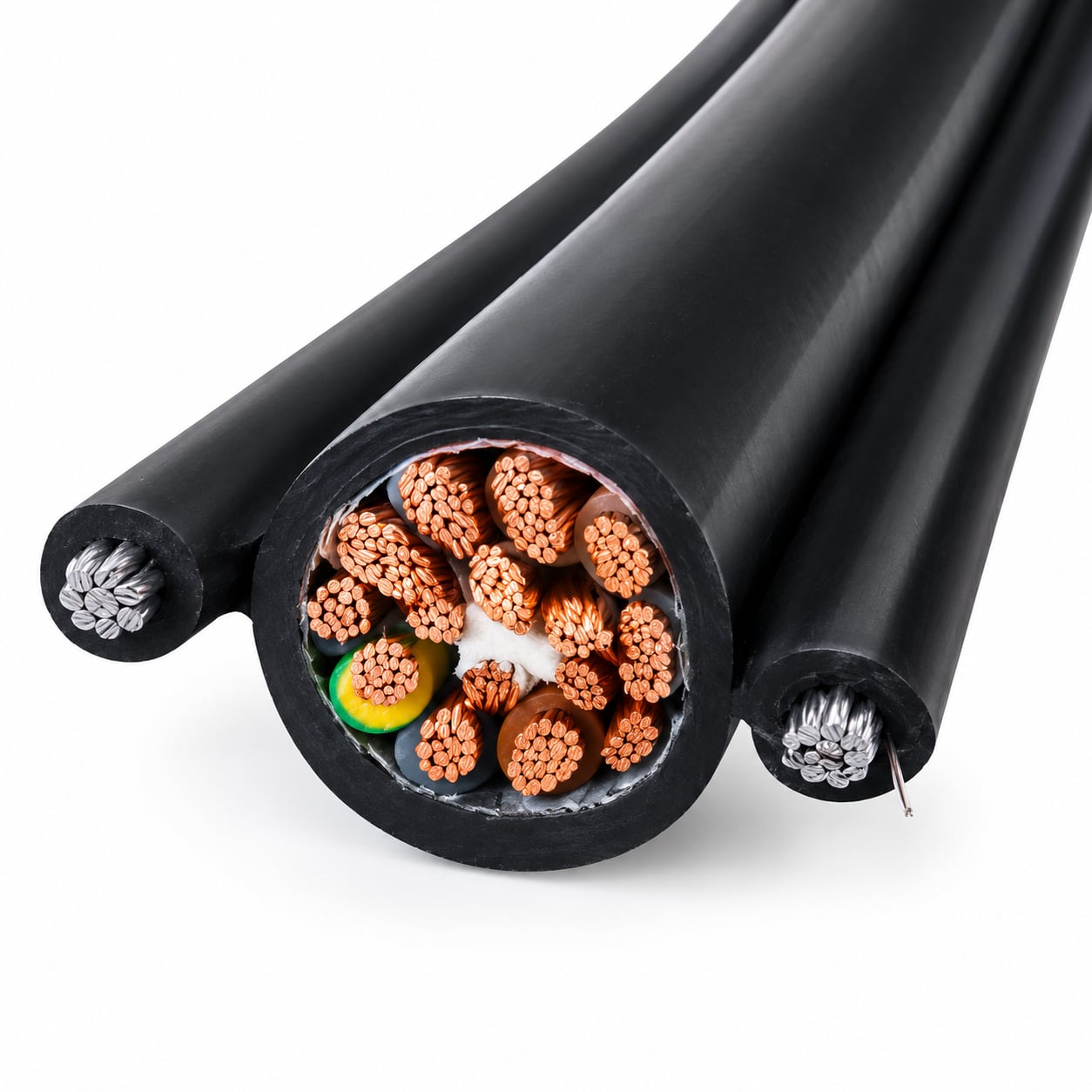

Crane Pendant Control Cable
Part No. SW-PENDANT-12C-100
Heavy-duty pendant cable for overhead crane controls in commercial facilities.
Conductor
16 AWG
Voltage
600V
Ampacity
10A per conductor
Temperature
90°C
- Min. Order
- 100 ft
- Lead Time
- 5-7 business days
- Packaging
- 100 ft, 250 ft Coils
Technical Specifications
| Conductor | Stranded Copper |
| Insulation | Rubber with Neoprene Jacket |
| Gauge | 16 AWG |
| Voltage Rating | 600V |
| Temperature Rating | 90°C |
| Ampacity | 10A per conductor |
| Color | Black |
| Packaging | 100 ft, 250 ft Coils |
| Conductors | 12 |
Construction
Conductor
Stranded Copper, sized 16 AWG to deliver 10A per conductor of continuous ampacity.
Insulation
Rubber, rated to 90°C and 600V.
Outer Jacket
Neoprene Jacket
Finished Dimensions
Black jacket, supplied on 100 ft, 250 ft Coils.
Applications
Common Questions
What is the minimum order quantity and lead time?
Minimum order quantity is 100 ft. In stock — typical lead time 5-7 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries UL Listed, CSA Certified, OSHA Compliant certifications and complies with UL 62, CSA C22.2. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 90°C with a Neoprene jacket. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat, flexible to -60°C) or PTFE/FEP fluoropolymer (extreme heat and chemical exposure) or TPE (cold flex) constructions are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom colors (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to engineering@shanghaiunicorncable.com.
