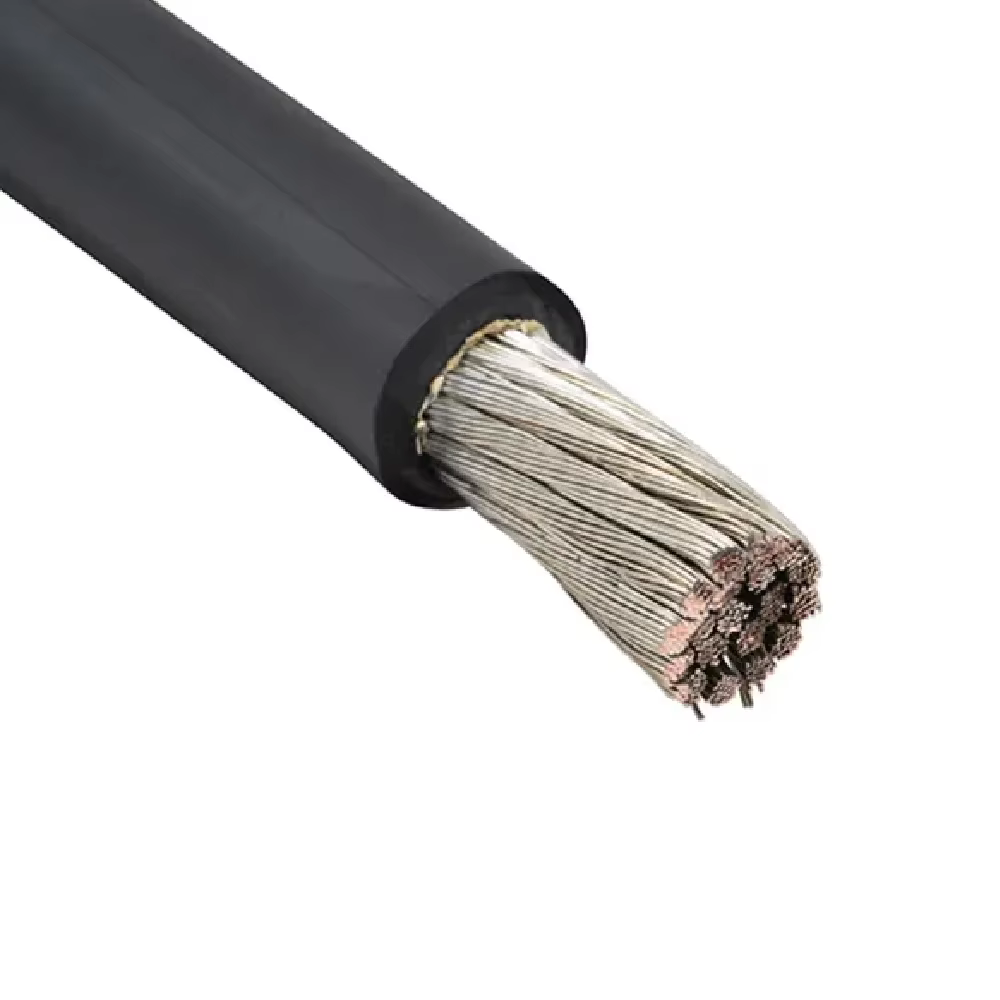

Wind Turbine Cable 35kV
Part No. SW-WINDTUB-35KV-500
High-voltage power cable designed specifically for wind turbine installations.
Conductor
2/0 AWG
Voltage
35kV
Ampacity
280A
Temperature
90°C
- Min. Order
- 500 ft
- Lead Time
- 10-14 business days
- Packaging
- 500 ft, 1000 ft Reels
Technical Specifications
| Conductor | Class B Stranded Copper |
| Insulation | EPR with UV-Resistant CPE Jacket |
| Gauge | 2/0 AWG |
| Voltage Rating | 35kV |
| Temperature Rating | 90°C |
| Ampacity | 280A |
| Color | Black |
| Packaging | 500 ft, 1000 ft Reels |
| Uv Resistance | Excellent |
Construction
Conductor
Class B Stranded Copper, sized 2/0 AWG to deliver 280A of continuous ampacity.
Insulation
EPR, rated to 90°C and 35kV.
Outer Jacket
UV-Resistant CPE Jacket
Finished Dimensions
Black jacket, supplied on 500 ft, 1000 ft Reels.
Applications
Common Questions
What is the minimum order quantity and lead time?
Minimum order quantity is 500 ft. In stock — typical lead time 10-14 business days. Large-volume and OEM programs may qualify for reduced minimums and blanket order pricing.
What certifications and documentation are provided?
This product carries UL Listed, CSA Certified, IEC 60502, RoHS Compliant certifications and complies with IEC 60502-2, UL 1309. Every shipment includes a Certificate of Compliance. UL yellow cards, RoHS/REACH declarations, production test reports, and full batch traceability are available on request.
Can this cable be used outdoors or in extreme temperatures?
Rated 90°C with a UV-Resistant CPE jacket. For outdoor or UV-exposed installations, specify the UV-resistant formulation. Beyond the rated temperature range, silicone (high heat, flexible to -60°C) or PTFE/FEP fluoropolymer (extreme heat and chemical exposure) or TPE (cold flex) constructions are available — contact us with your environmental parameters.
Do you offer custom lengths, colors, or configurations?
Yes. Custom colors (2,500 ft min), custom print legends, gauge changes, shielding, and multi-conductor assemblies are available. OEM programs with blanket orders can negotiate minimums below the standard threshold. Send requirements to engineering@shanghaiunicorncable.com.
